Home > PRODUCTS > CASING &TUBING COUPLINGS > Pup Joint

CASING &TUBING COUPLINGS

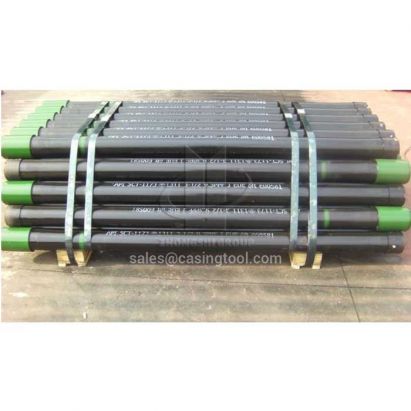

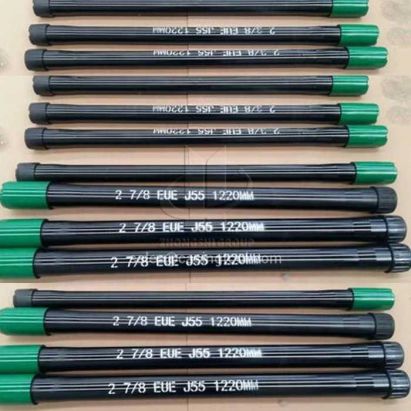

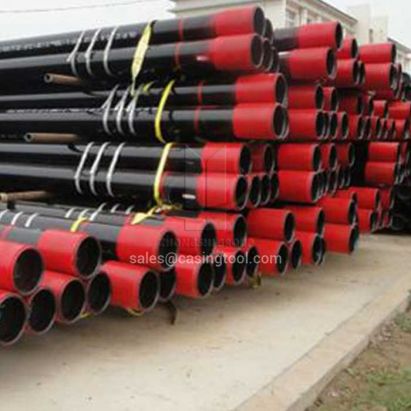

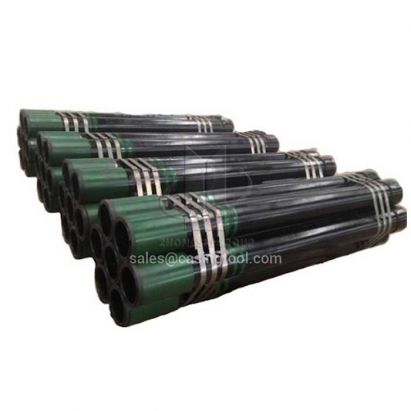

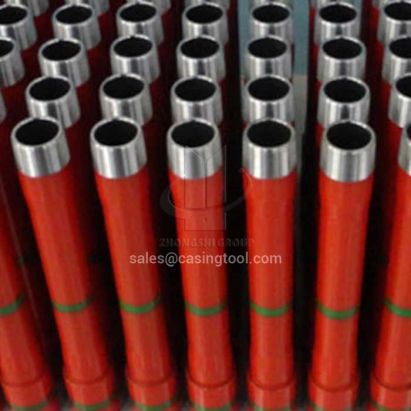

Pup Joint

Pup joints and varying lengths of tubing and casing are used to adjust the production string length as close as possible to the desired value.

Pup joints and varying lengths of tubing and casing are used to adjust the production string length as close as possible to the desired value. Then the adjustable union or joint is installed, rotationally adjusted, and locked to the desired make up length. In dual completions, the tool can be used to adjust the length of the short string. The adjustable unions and joints facilitate tubing space out when completing a well. In most completions, the length of tubing available at surface is not enough for proper wellhead installation and operation.

Pup Joint Options:

● Size: Outside Diameter 1.66” to 20” (42.16mm-508mm)

● Grade: H40/J55/K55/N80/L80/C95/T95/P110/Q125

● Executive Standard: API 5CT, GB, ISO11960, GOST

● Connections:

API Connection: EUE/NUE/STC/ LTC/ BTC

Premium Connection

● Length: Range 1(4.88-7.62M) / Range 2 (7.62-10.36M)/ Range 3(10.36-14.63M)

● Protection:

External bare and uncoated or externally coated with black/ transparent anti rust Mill varnish Plastic or Metal Pin and Box Protectors.

Internal plastic coating or sleeves.

● Mill Test Certificates:

Issued in accordance with API Specification 5CT Eighth Edition.

Additional Third Party Inspection can also be performed on request.
