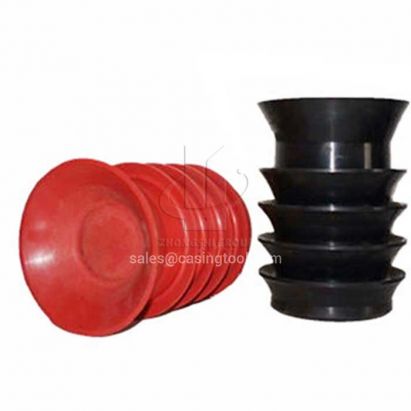

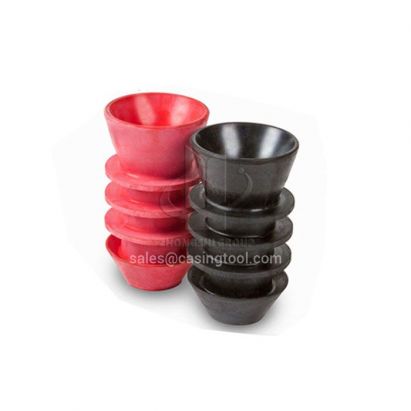

Conventional Cementing Plug
Cementing plugs are used during cementing operations for wiping the casing ID clean of drilling fluids and providing separation between mud, spacers, and cement.
Cementing plugs are used during cementing operations for wiping the casing ID clean of drilling fluids and providing separation between mud, spacers, and cement.
They also prevent over displacement of the cement slurry and indicate when the cementing job is complete. All plugs are designed to fit in conventional cementing heads.
Cementing plugs designed and tested for superior performance.
The plugs are built using aluminum cores to which an outside layer of rubber is molded. The wiping and sealing fins are molded from Natural Rubber or Hydrogenated Nitrile (HNBR) with the minimal thickness of rubber designed to allow for proper wiping and sealing. The plug set is designed and tested to withstand 5,000 psi differential pressure. The plug sets are also designed and tested to allow them to be pumped onto the float equipment rates of up to 10 barrels per minute. The plugs are designed to fit in conventional cementing heads
Features:
Ideal for use in high temperature well conditions
Cast Aluminum core cementing plugs
Wiping fins are molded from Natural Rubber or Hydrogenated Nitrile (HNBR)
Temperature rating (°F): -65 to 180 (Standard); -40 to 300 (High Temp)
PDC Drillable
For more information talk to our Product Service Experts
