Float Equipment with Plunger Valves
During cementing operations, float equipment is essential for preventing back-flow while also serving as a landing point for wiping and displacement plugs.
During cementing operations, float equipment is essential for preventing back-flow while also serving as a landing point for wiping and displacement plugs.
The plunger valve is used in float equipment for applications where high flow rates, lost circulation materials (LCM) and/or extended flow rates are encountered.
The valve has a nitrile coated phenolic plunger for wear resistance and sealing of the valve.
FEATURES
PDC or Tri-Cone drillable.
Composite housing with one piece over-molded plunger.
Available with auto-fill option.
Available in double valve configuration.
API III-C rating; 24 hours of flow @ 10bpm, 5000 psi back pressure at 400°F.
Premium connections and aluminum plunger valves are available.

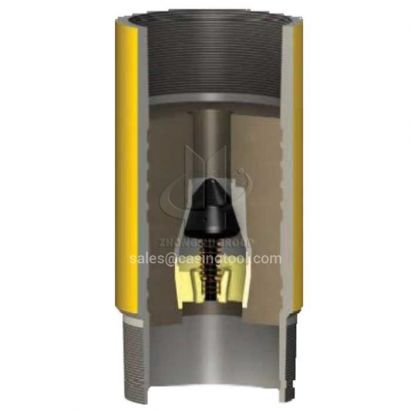

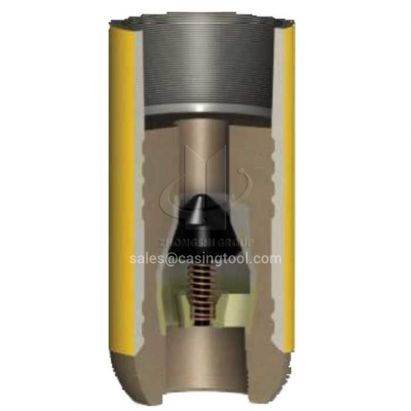

The following float equipment (float collar and float shoe) are available:
The float equipment is an all-purpose design utilized in applications ranging from close tolerance liners to full casing strings for casing sizes 4-1/2” and up.
Performance Features:
▲ Valve back pressure rated to 5,000 psi.
▲ Flow rating of 24 hours @ 10 BPM.
▲ Temperature rating of 400°F.
▲ Rounded cement nose provided as standard for guiding casing to target depth(TD).
▲ Nitrile coated plunger for abrasion resistance.
▲ Easy drill out of valve components.
Options:
▲ Non-rotating plate to match non-rotating plugs.
▲ Ball deflector.
▲ Available in single and double valve configuration.
▲ Nose options include: composite nose, aluminum bullet nose, aluminum eccentric nose, and aluminum spade nose.
▲ Side ports.
▲ Up/down jets.
▲ Auto fill.
▲ Orifice tube(s)
