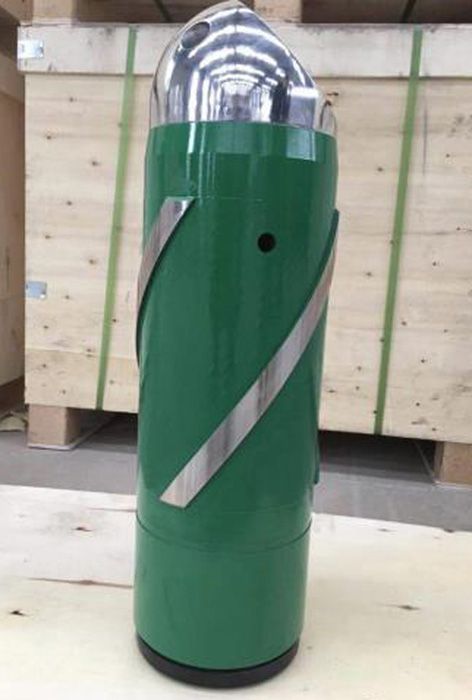

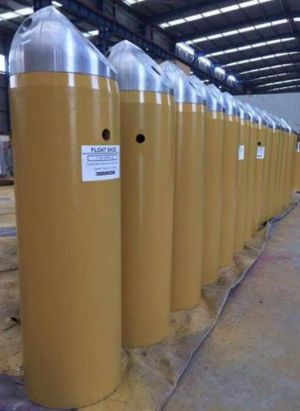

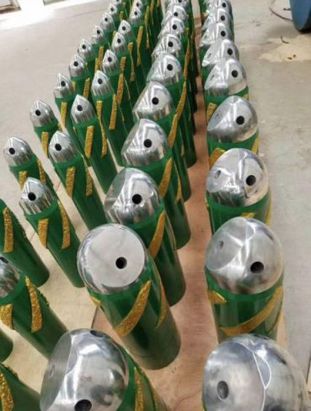

Reamer Shoe
The Reamer Shoe is designed for problematic well conditions (such as bridging, swelling or ledges) where reciprocation and/or rotation of the casing is required to ream the hole and land the casing or liner to total depth.
The Reamer Shoe is designed for problematic well conditions (such as bridging, swelling or ledges) where reciprocation and/or rotation of the casing is required to ream the hole and land the casing or liner to total depth. All internal components of the Reamer Shoe are fully drillable using Tri-Cone or PDC bits.
Performance Features:
• Back pressure of up to 5,000 psi.
• Flow rating of 24 hours @ 10 bpm.
• Temperature rating of 400°F.
• Helical tungsten carbide cutting structure.
• Casing side ports for optimized circulation.
• Aluminum eccentric nose with down jets for guiding over ledges and washing casing to seat for sizes up to 16”.
• Aluminum bullet nose with down jet standard for 16” and larger.
• It has machined vanes for larger Junk Slot Area (JSA) and improved Equivalent Circulating Density’s (ECD’s).
Options:
• Single valve or Double valve.
• Blade OD can be customized depending on customer requirements.
• Can be configured for 6-5/8” to 30” casing sizes and materials with slip-on, API or premium connections.
